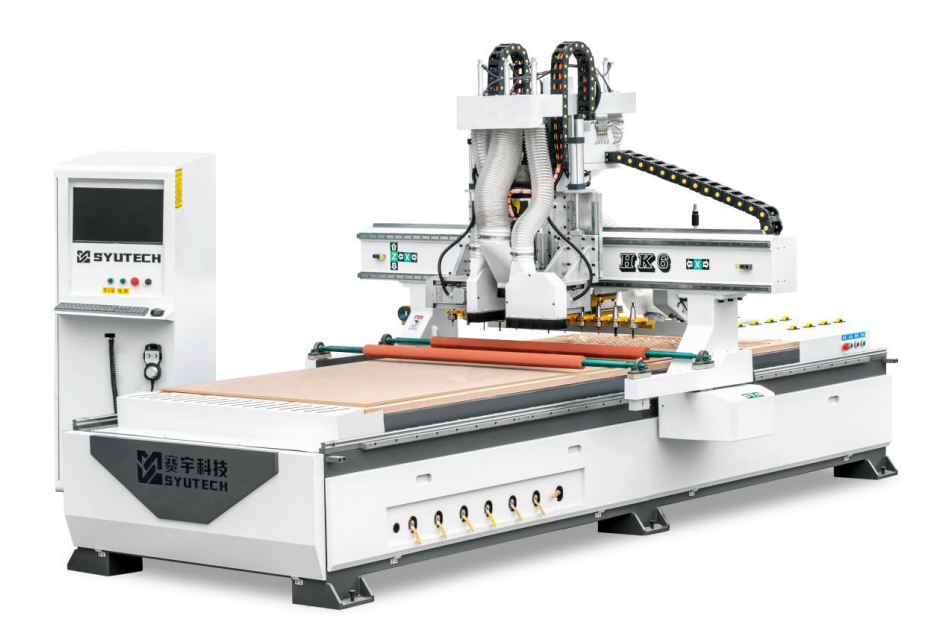

HK-8?鋁木一體開料機
Aluminum & Wood Cutting Machine
鋁木家具，一機兩用
Aluminum Wood furniture，dual use for one machine
?
配備鋁蜂窩板專用縱橫鋸片，直排刀庫12把刀
可實現多種工藝，雕刻、鏤銑、打孔、開槽、倒邊、異形切割
鋁板，木板開料都可以大批量生產加工，一人操作即可，實現降本增效
?
Equipped with specialized vertical and horizontal saw blades for aluminum honeycomb panels,with 12pcs linear type tool changer .
Can achieve various processing processes,such as carving,milling,punching,slotting, chamfering,and irregular cutting
Aluminum plate and wooden board cutting can be produced and processed in large quantities,operated by one person,achieving cost reduction and efficiency improvement.
?
?
?
技術參數
| 型號 | Model? | HK 8 |
| X軸加工行程 | X-axis machining stroke | 1350mm |
| Y軸加工行程 | Y-axis machining stroke | 3000mm |
| Z軸加工行程 | Z-axis machining stroke | 250mm |
| 空轉速度 | Empty run speed | 30000mm/min |
| 主軸數 | Number of spindles | 1 |
| 主軸轉速 | Spindle speed | 0-24000rpm |
| 主軸功率 | Spindle power | 7.5kw |
| 外形尺寸 | Overall dimensions | 4300*2400*2200mm |
| 重量 | Weight | 3500kg |
