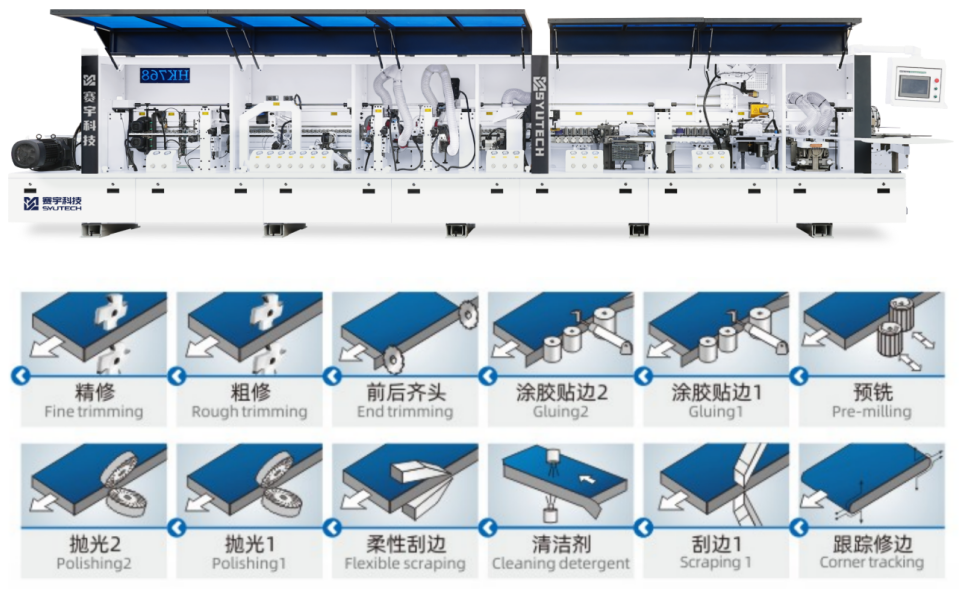

HK-768 重型全自動高速封邊機
Heavy duty fully automatic high-speed edge banding machine
?
技術參數
| 型號? | Model | HK-768 |
| 外形尺寸? | Overall dimensions | 8500*800*1650mm |
| 封邊帶寬度 | Edge banding width | 10-60mm |
| 整機重量 | Overall weight | 3T |
| 封邊帶厚度 | Edge banding thickness | 0.4-3mm |
| 總功率 | Total power | 20kw |
| 拋光電機功率 | Polishing | 0.18*4 |
| 輸送帶電機 | Conveyor belt motor | 4kw |
| 額定電壓 | Rated voltage | 380V 50HZ |
| 工件最小長度 | Minimum length of workpiece | ?≥150mm |
| 額定氣壓 | Rated air pressure | 0.7MPA-0.9MAP |
| 工件最小寬度 | Minimum width of workpiece | ≥40mm |
| 工件輸送速度? | Minimum conveying speed | 18-22-25m/min |
| 系統 | System | 匯川（Inovance） |
| 觸摸屏 | Touch screen | 昆侖動態屏（MCGS touch screen） |
