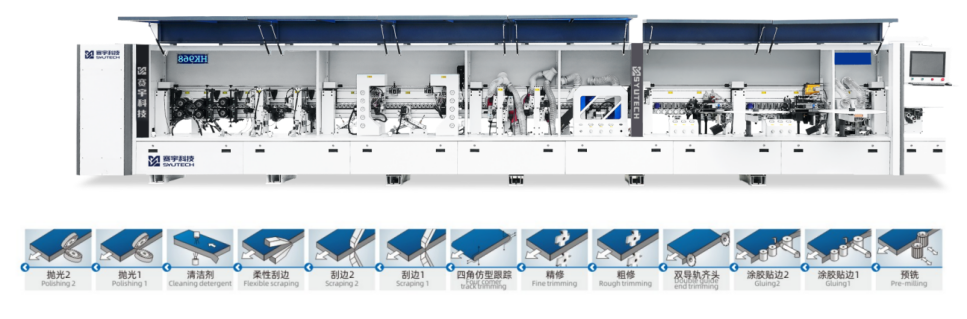

HK-968重型全自動高速封邊機
Heavy automatic high-speed edge banding machine
重型高速，精準穩定！
重型機身，加厚機架，退火處理，不易變形
雙導軌齊頭，帶自動泄壓閥，快速精準不磕板
Heavy-duty high-speed，accurate and stable！
Heavy-duty body,thickened frame,annealed,not easy to deform,double guide rails end
Trimming,with automatic pressure relief valve,fast and accurate without bumping the board
?
技術參數
| 型號 | Model | HK-968 |
| 外形尺寸 | Overall dimensions | 11000*1200*1700mm |
| 封邊帶寬度 | Edge banding width | 10-60mm |
| 整機重量? | Overall weight | 5T |
| 封邊帶厚度? | Edge banding thickness | 0.4-3mm |
| 總功率 | Total power? | 25kw |
| 拋光電機功率 | ?Polishing?? | 0.18*4 |
| 輸送帶電機? | Conveyor belt motor | 7.5kw |
| 額定電壓? | Rated voltage | 380V 50HZ |
| 工件最小長度 | Minimum length of workpiece | ≥150mm |
| 額定氣壓 | Rated air pressure | 0.7MPA-0.9MAP |
| 工件最小寬度 | Minimum width of workpiece | ≥50mm |
| 工件輸送速度 | Minimum conveying speed | 18-22-25m/min |
| 系統 | System | 匯川（Inovance） |
| 觸摸屏? | Touch screen | 智能工控一體機（Intelligent industrial control screen） |
