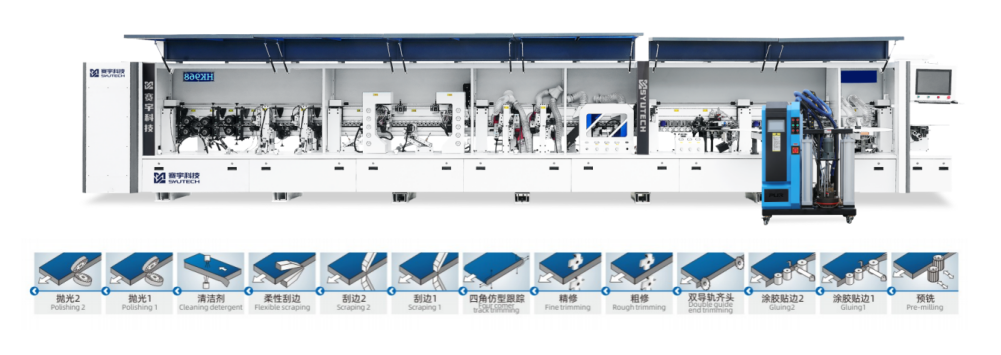

HK-968-V1?PUR重型全自動高速鋁蜂窩專用封邊機
PUR high-speed aluminum honeycomb plate edge banding machine
柜門柜體，一鍵切換！
雙色免清洗膠鍋，省時省力高效，節省用膠不浪費
功能齊全，兩組刮邊，方便柜門柜體封邊，一鍵切換
Cabinet door and body，one click switching！
Dual color non cleaning glue pot,time-saving,labor-saving，and efficient,
Saving glue and not wasting
Fully functional,two sets of edge scraping for convenient edge sealing of
Cabinet doors and bodies,one click switching
?
技術參數
| 型號 | Model | HK-968-V1 |
| 外形尺寸 | Overall dimensions | 12000*1200*1600mm |
| 封邊帶寬度 | Edge banding width | 10-60mm |
| 整機重量 | Overall weight | 4.6T |
| 封邊帶厚度 | Edge banding thickness | 0.4-3mm |
| 總功率 | Total power | 30kw |
| 拋光電機功率 | Polishing | 0.18*4 |
| 輸送帶電機? | Conveyor belt motor | 7.5kw |
| 額定電壓 | Rated voltage | 380V 50HZ |
| 工件最小長度 | Minimum length of workpiece? | ≥150mm |
| 額定氣壓 | Rated air pressure | 0.7MPA-0.9MAP |
| 工件最小寬度 | Minimum width of workpiece | ≥50mm |
| 工件輸送速度 | Minimum conveying speed | 18-22-25m/min |
| 系統? | System | 匯川（Inovance） |
| 觸摸屏 | Touch screen | 智能工控一體機（Intelligent industrial control screen） |
