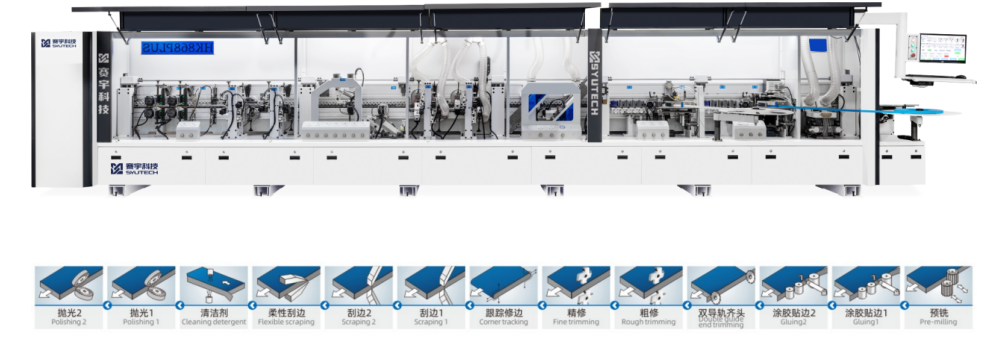

HK-868 PULS重型全自動高速封邊機
Heavy duty fully automatic high-speed edge banding machine
多方位升級，穩定性更強！
電腦操作，傳輸更穩定，效率更高，柜門柜體模式一鍵切換
電機更大，承載力度更大，輸送穩定，裝有安全防護罩，避免積灰
Multi-faceted upgrades,stronger stability!
Computer operation,more stable transmission,higher efficiency Process
Cabinet door & cabinet body one-click switching,
Motor larger,Greater carrying capacity,Stable conveying Equipped with
safety cover to avoid dust accumulation
?
?
技術參數
| 型號 | Model? | HK-868 PULS |
| 外形尺寸 | Overall dimensions? | 10000*1200*1600mm |
| 封邊帶寬度 | Edge banding width | 10-60mm |
| 整機重量??? | Overall weight | 4T |
| 封邊帶厚度? | Edge banding thickness | 0.4-3mm |
| 總功率??? | Total power? | 23kw |
| 拋光電機功率 | Polishing? | 0.18*4 |
| 輸送帶電機 | Conveyor belt motor | 大5.5kw |
| 額定電壓 | Rated voltage | 380V 50HZ |
| 工件最小長度 | Minimum length of workpiece | ≥150mm |
| 額定氣壓 | Rated air pressure | 0.7MPA-0.9MAP |
| 工件最小寬度 | Minimum width of workpiece | ≥50mm |
| 工件輸送速度?? | Minimum conveying speed | 18-22-25m/min |
| 系統?? | System | 匯川（Inovance） |
| 觸摸屏 | Touch screen? | 智能工控一體機（Intelligent industrial control screen） |
