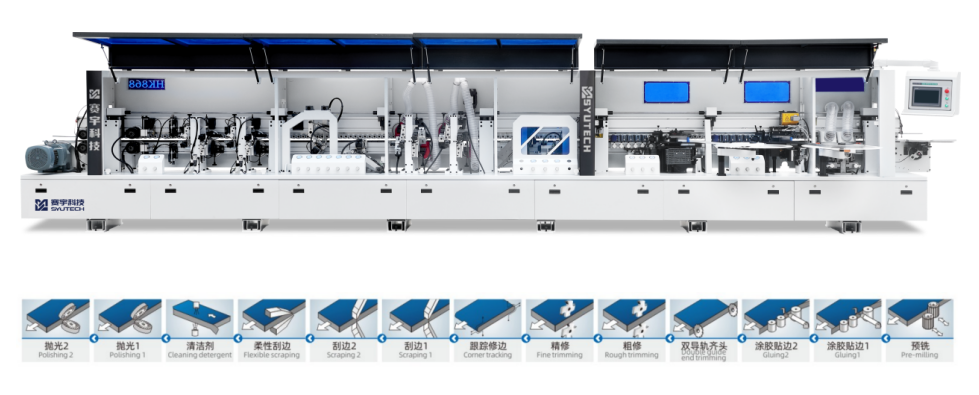

HK-868 重型全自動高速封邊機
Heavy duty fully automatic high-speed edge banding machine
好事成雙，打破不穩定！
全包圍重型機架，加固回子型支撐腳，整機機身經過退火處理
6個大立柱+11個小立柱+7個升降盒，雙電機升降加強穩定性
Good things come in pairs,intelligent and efficient,breaking instability!
Fully enclosed heavy-duty frame with reinforced zigzag support feet,
and the entire machine body has undergone annealing treatment
6 large columns+11 small columns+7 lifting boxes,dual motor lifting to enhance stability
?
?
?
技術參數
| 型號? | Model? | HK-868 |
| 外形尺寸? | Overall dimensions | 9500*1200*1600mm |
| 封邊帶寬度? | Edge banding width | 10-60mm |
| 整機重量 | Overall weight | 3.5T |
| 封邊帶厚度 | Edge banding thickness | 0.4-3mm |
| 總功率?? | Total power? | 21kw |
| 拋光電機功率?? | Polishing | 0.18*4 |
| 輸送帶電機 | Conveyor belt motor? | 5.5kw |
| 額定電壓?? | Rated voltage? | 380V 50HZ |
| 工件最小長度? ? | Minimum length of workpiece | ≥150mm |
| 額定氣壓 | Rated air pressure | 0.7MPA-0.9MAP |
| 工件最小寬度 | Minimum width of workpiece | ≥50mm |
| 工件輸送速度 | Minimum conveying speed? | 18-22-25m/min |
| 系統 | System | 匯川（Inovance） |
| 觸摸屏 | Touch screen | 昆侖動態屏（MCGS touch screen） |
